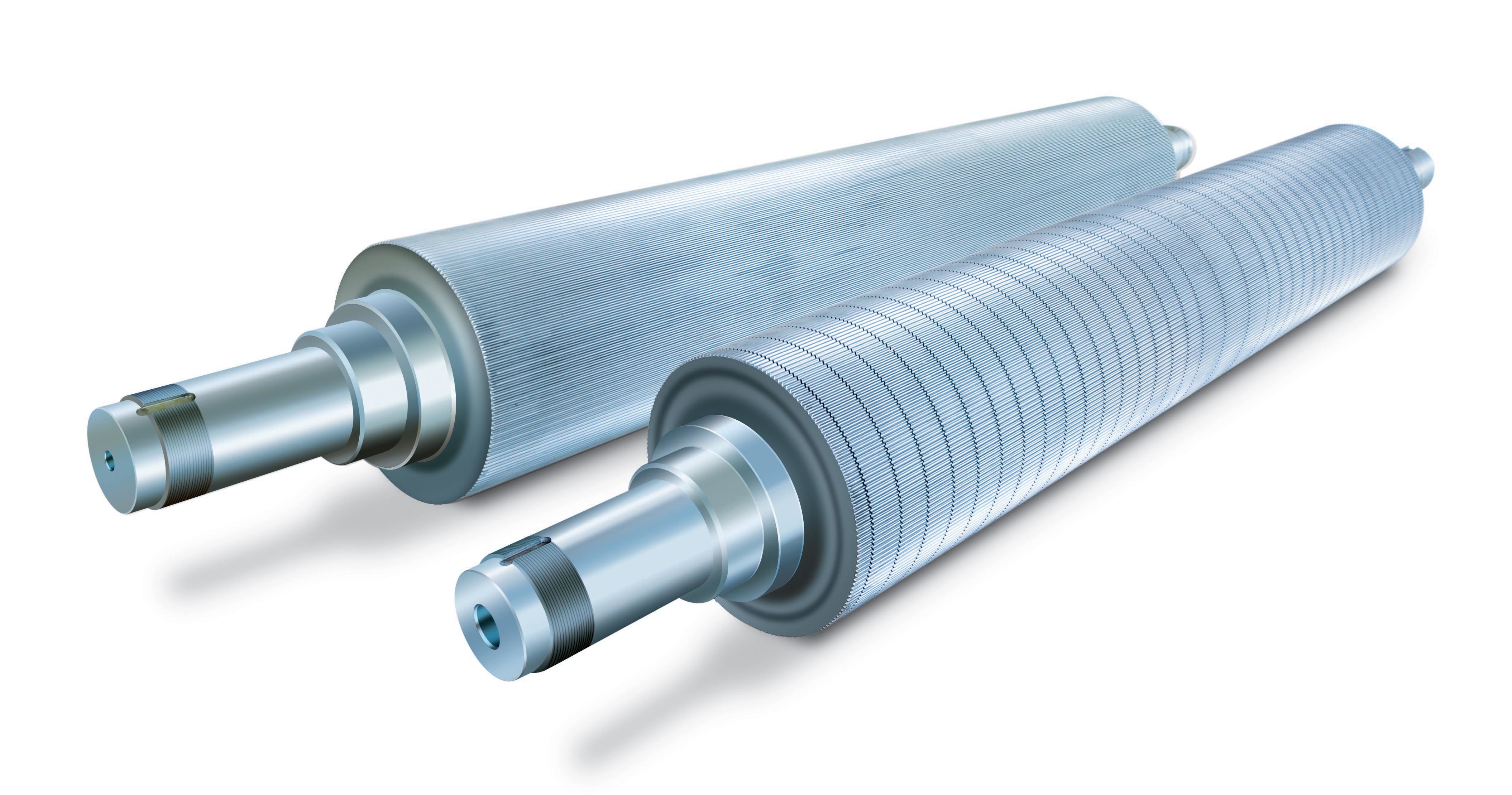

Corrugator Hard Chrome Plated Roller 1700mm Width 260mm Diameter
| Product name | Corrugating rolls, corrugated roller |
| Material | 50CrMo |
| Application | Single facer, corrugator machine |
| Diameter | 200-600mm |
| Width | 1000-2800mm |
| Flute Profile | A, C, B, E, F, G, N, O |
| Heating Treatment | Intermediate frequency quenching treatment |
| Hardness | ≥HRC58 after heating treatment, harden layer 8-12mm |
| Coating | Tungsten carbide, hard chrome 0.06-0.08mm |
| Corrugator line | BHS, Fosber, BW Paper System, Hsieh Hsu, K&H, JS, Fuli, Wanlian, Taiwan Mingwei, Chinese Mingwei, Meiguang, Dongguang, Dpack, Xinguang, Xieyang, Shengli, Indian machine, etc. |
Application:
Corrugating roll is one of the most important components in corrugated carton production. Usually, it is an essential part of single facer. Corrugating rolls consist of two parts: upper roll and lower roll. The lower corrugating roll is the driving roll, which is generally fixed while the upper one is the driven roll.
Comparison Between Tungsten Carbide Roller and the Hard Chrome plated Roller
| Compared Item | Hard Chrome Plated Corrugated Roller | Tungsten Carbide Corrugated Roller |
| Flute profile and TUR | Due to the poor wear resistance of chrome-plated corrugated roller, in order to ensure the wear height is not lower than the standards,the tooth profile needs to be designed higher accordingly. | Tungsten carbide corrugated roller has high hardness, excellent wear resistance and low tooth height. Moreover, it will not reduce the compressive strength of the finished products due to the wear on the top of the tooth. A more optimized v-shape tooth can be designed to increase the strength of the cardboard, reduce the amount of the glue applied and save corrugated paper. |
| Thickness of finished board | Using chrome corrugated roller will lead to wear, and the height of the flute will be lower, so the thickness of corrugated board will be decreased. | Tungsten carbide corrugated roller will never wear in theory, and can ensure the finished corrugated board’s durability from high quality production. |
| Service life of corrugated roller | The service life of chrome-plate corrugated roller is generally between 8-12 million meters. | The service life of tungsten carbide corrugated roller can reach at least 35 million meters, reducing the number of maintenance and replacement times, saving manpower, material and financial resources. |
| Usability of corrugated roller’s substrate | Because chrome corrugated roller wear resistance is poor, and repair at every time will reduce the corresponding diameter and hardness. Paper rate will be increased accordingly, and the number of repair will be less. | Tungsten carbide roller’s wear resistance is good, and it’s tungsten carbide coating adopts special removing process, so corrugated roller substrate can not be damaged, and corrugated roller can be used for many times with repairing. |
Store well
1. Store in dry places.The surface of corrugating rolls is not compact structure. The permeation and corrosion of water and steam will cause unusual falling off of coating.
2. Apply silicon oil. The silicon oil is valid for 3 months. If you don’t use corrugating rolls for a long time, silicon oil must be applied to the rolls regularly to avoid unusual falling off of coatings caused by the permeation and corrosion of water and steam.
3. Keep the surface clean. If you put the corrugating rolls in the warehouse, the surface should be cleaned and applied silicon for later use.
