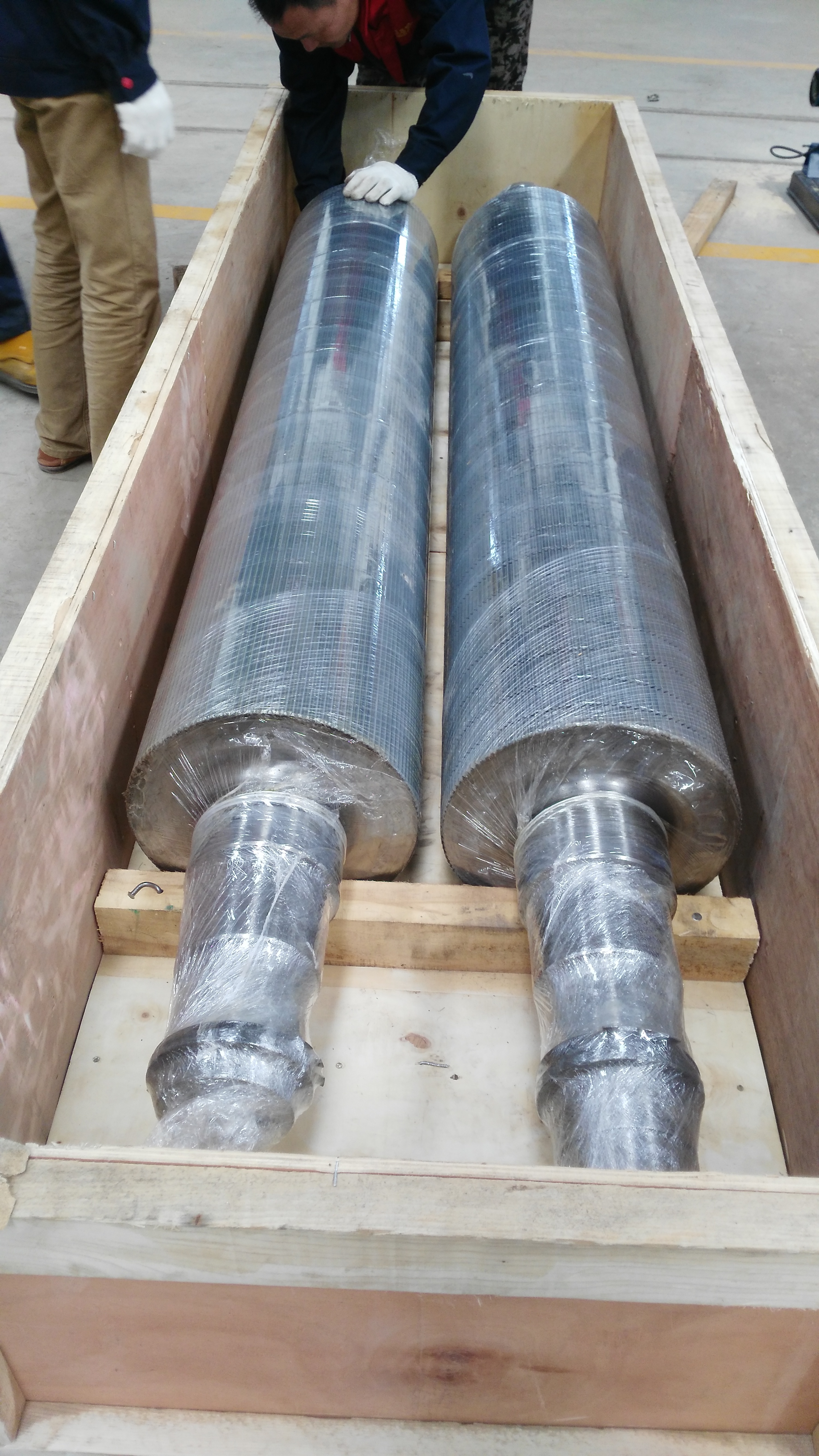

E Flute Steam Heating Hard Chrome Plated Corrugated Roller for Single Facer
| Product name | Corrugating rolls, corrugated roller |
| Material | 50CrMo |
| Application | Single facer, corrugator machine |
| Diameter | 200-600mm |
| Width | 1000-2800mm |
| Flute Profile | A, C, B, E, F, G, N, O |
| Heating Treatment | Intermediate frequency quenching treatment |
| Hardness | ≥HRC58 after heating treatment, harden layer 8-12mm |
| Coating | Tungsten carbide, hard chrome 0.06-0.08mm |
| Corrugator line | BHS, Fosber, BW Paper System, Hsieh Hsu, K&H, JS, Fuli, Wanlian, Taiwan Mingwei, Chinese Mingwei, Meiguang, Dongguang, Dpack, Xinguang, Xieyang, Shengli, Indian machine, etc. |
Applications:
Corrugating rolls are the core element of each corrugator and are essentially responsible for the quality of the corrugated board and the productivity of the corrugator.
Heat the hard chrome plated corrugated roller well.
A. Start the corrugating rolls before filling in steam to avoid abnormal deformation.
B. Check the temperature of corrugating roll and pressure roll regularly to avoid temperature decrease caused by accumulation of condensate water.
C. If the temperature is abnormal, please check and keep the correct position of siphon to let condensate water out successfully.
