G Flute Indian Single Facer Hard Chrome Plated Roller
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 50CrMo Precision Forged Alloy Steel
Coating: 60-80μm Hard Chrome
Size: 1600mm*260mm
Heating Treatment: Intermediate Frequency Quenching
Hardness: >HRC58 After Hardening
Harden Layer Depth: 8-12mm
Flute Type: G Flute 0.7 Mm
Warranty: 3 Million Meters
High Light:

Single Facer Hard Chrome Roller

,

G Flute Hard Chrome Plated Roller

Basic Infomation
Place of Origin: Made in China
Brand Name: YH
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: Wooden Boxes
Delivery Time: 60-90 days
Payment Terms: T/T
Supply Ability: 1500 sets per year
Product Description

Indian Single Facer Corrugated Hard Chrome Plated Roller G Flute


Flute Profile



Almost every set of corrugating rolls are needed to be designed and customized separately according to the width, diameter, flute height, corrugated paper GSM, speed and cardboard physical index requirement.



Flute Profile Height(mm) Pitch(mm) Flutes/300mm T.U.R
A UV 4.5-5.0 8.0-9.5 34±3 1.45-1.52
C UV 3.5-4.0 6.8-7.9 41±3 1.37-1.47
B UV 2.5-3.0 5.5-6.5 50±4 1.33-1.41
E UV 1.1-2.0 3.0-3.5 93±6 1.24-1.36
F UV 0.8-1.0 2.2-3.2 115±20 1.19-1.25
G UV 0.6-0.8 1.8-2.8 136±20 1.15-1.20
N UV 0.4-0.6 1.2-2.2 193±55 1.10-1.15
Others UV Customized Design Design Design



Precision Welding Can Be Inseparable



Both ends of the roller body should be heated to release the size of the inner bored hole. After the spindle heads are put in, the roller body and the spindle heads should be held tightly after natural cooling. When everything is ready, a driving fit interface has been formed between the roller body and the spindle heads by means of preheating, welding or bolting. Special care should be taken when welding, because finished corrugated roller body’s temperature will rise constantly when the roller is running, and the roller body also bears pressure of the steam from the inside of the roller body, which will form the so-called “pressure vessel”. In view of this, the roller body and the spindle heads joint must pass the pressure test. When the welding process finished, the work piece shall be put into the furnace for high temperature tempering to reduce stress.



 G Flute Indian Single Facer Hard Chrome Plated Roller 0


Strict Test to Keep Improving

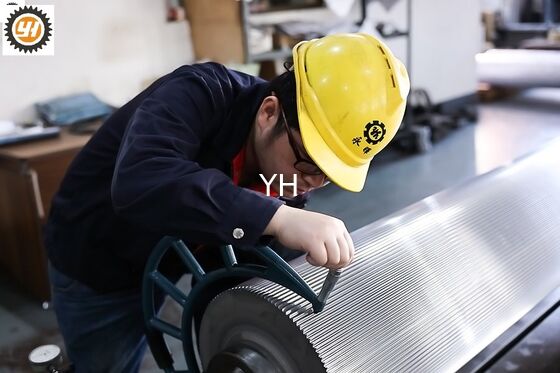

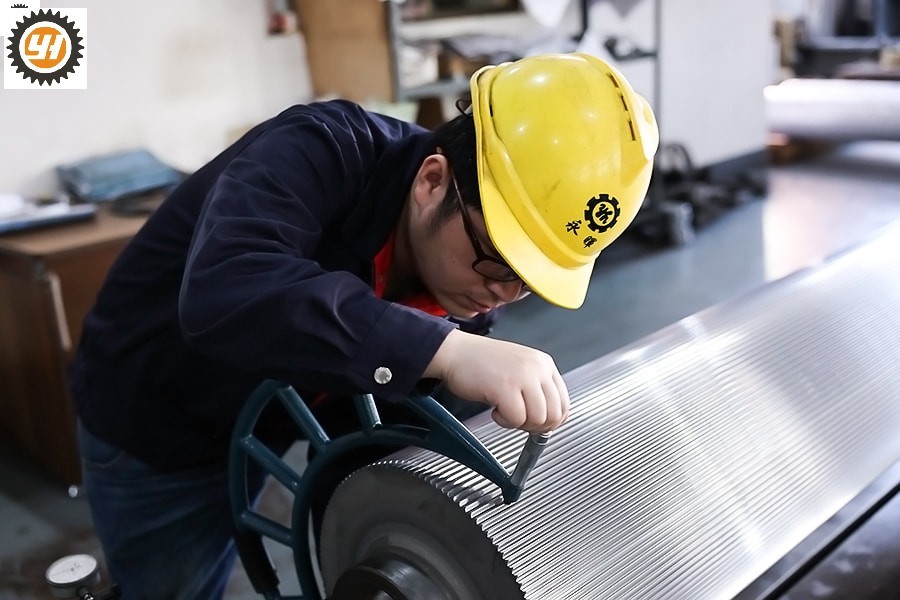

Before and after the surface treatment including tungsten carbide plating or hard chrome coating of corrugating rolls, it is needed to check the size, hardness, precision, flute profile, and simulation feeding paper. Special projector is used to check the flute profile and feeding different GSM paper to ensure the performance of corrugating rolls.

G Flute Indian Single Facer Hard Chrome Plated Roller 1



Precision Index of Hard Chrome Corrugated Roller



Item Index
Gear teeth height limits of deviation ≤ 0.01mm
Addendum circle run out tolerance ≤ 0.02mm
Gear teeth width limits of deviations ≤ 0.015mm
Tooth profile limits of deviations ≤ 0.01mm
Gear lateral face counter shaft parallelism ≤ 0.01mm
Tip cylinder element linear ≤ 0.01mm
Gear teeth division limits of deviations ±10"
Smooth finish Ra<0.6µm



G Flute Indian Single Facer Hard Chrome Plated Roller 2
