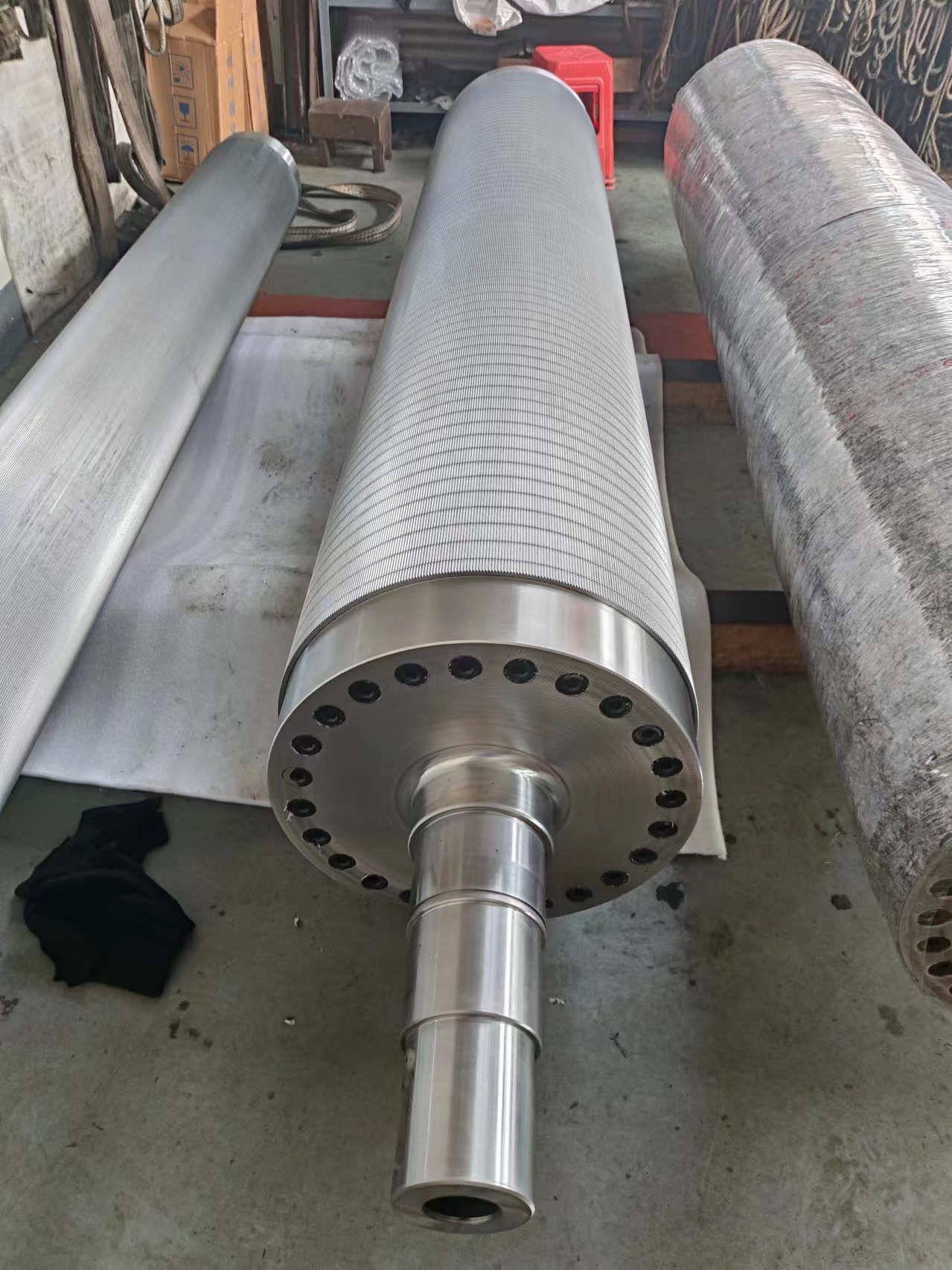

For Dinghao Oil heating Hard Chrome B Flute Corrugated Roller 1400mm Width
| Product name | Corrugating rolls, corrugated roller |
| Material | 50CrMo |
| Application | Single facer, corrugator machine |
| Diameter | 200-600mm |
| Width | 1000-2800mm |
| Flute Profile | A, C, B, E, F, G, N, O |
| Heating Treatment | Intermediate frequency quenching treatment |
| Hardness | ≥HRC58 after heating treatment, harden layer 8-12mm |
| Coating | Tungsten carbide, hard chrome 0.06-0.08mm |
| Corrugator line | BHS, Fosber, BW Paper System, Hsieh Hsu, K&H, JS, Fuli, Wanlian, Taiwan Mingwei, Chinese Mingwei, Meiguang, Dongguang, Dpack, Xinguang, Xieyang, Shengli, Indian machine, etc. |
Strict Selection High Quality Material
Good raw material is an important factor in high quality of corrugating roll. We select the best raw material manufacturer in China. With high strength and toughness, good hardenability, no obvious temper brittleness, 50CrMo alloy steel is specialized material for manufacturing corrugating rolls. Our raw material shell thickness is more than 70mm, the thicker shell can reduce deformation and keep stability during production.
Clean well
1. Don’t wash the corrugating rolls directly when the rolls are hot.
2. After the corrugating rolls cool down, wash the rolls by water or gas.
3. Clean the glue and paper scraps on corrugating rolls after production to avoid scratches of coatings.
4. After cleaning, apply silicon oil on corrugating rolls.
A unique processing with scrupulous attitude:
The shortest quality guarantee of running length can reach 3500mym,with tungsten carbide corrugating roll produced by Meijia.
Multiple repair is available,and the initial designing parameter can be attained after repair. The shortest quality guarantee of running length can reach 3500 mym above.
