50CrMo Alloy Steel 0.08mm Hard Chrome Plated Roller

1set
MOQ
$5000-$15000/set
Price
50CrMo Alloy Steel 0.08mm Hard Chrome Plated Roller
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 50CrMo Precision Forged Alloy Steel
Coating: 60-80μm Hard Chrome
Size: 1650mm×280mm
Heating Treatment: Intermediate Frequency Quenching
Hardness: >HRC58 After Hardening
Flute Type: B Flute 2.4 Mm
Warranty: 8 Million Linear Meters
Refurbish: 3-4 Times
High Light:

0.08mm Hard Chrome Roller

,

50 CrMo Corrugated Roller

,

0.08mm Hard Chrome Plated Roller

Basic Infomation
Place of Origin: Made in China
Brand Name: Meijia
Certification: ISO9001
Model Number: 1650mm×280mm
Payment & Shipping Terms
Packaging Details: Wooden Boxes
Delivery Time: 60-90 days
Payment Terms: T/T
Supply Ability: 1500 sets per year
Product Description

Electrical Heating Hard Chrome Corrugated Roller For Dongguang Corrugated Machine



Hard chrome corrugated  plated roller :

♦ 50CrMo alloy steel refined forging, barrel wall thickness ≥70mm

♦ Adopt advanced heat treatment technology, quenching hardness ≥HRC58

♦ Precision machine to do multi-layer process

♦ Hard chrome thickness 0.06-0.08mm,

♦ Lifetime more than 8 million meters

♦ A,C, B, E,F G, N flute

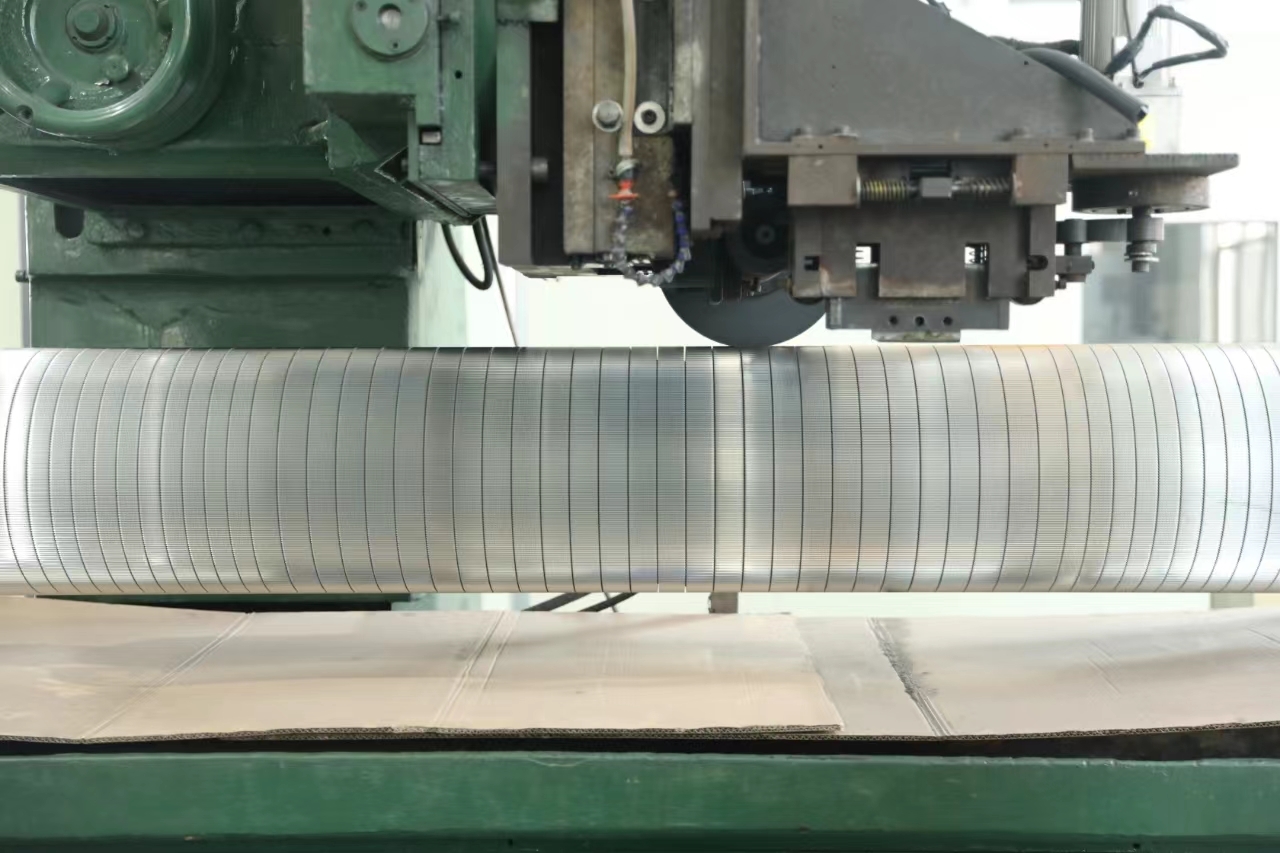

50CrMo Alloy Steel 0.08mm Hard Chrome Plated Roller 0



Strict Selection of Hard Chrome Plated Roller Material



Good raw material is an important factor in high quality of corrugating roll. We select the best raw material manufacturer in China. With high strength and toughness, good hardenability, no obvious temper brittleness, 50CrMo alloy steel is specialized material for manufacturing corrugating rolls. Our raw material shell thickness is more than 70mm, the thicker shell can reduce deformation and keep stability during production.

50CrMo Alloy Steel 0.08mm Hard Chrome Plated Roller 1



 Flute Profile



The most important parameter is the flute profile. To design the flute profile, we must know the corrugated paper gsm, speed, flute height, correct diameter and other requirement such as good FCT, saving paper, etc. Our engineer has rich experience of designing flute profile. Without good design, many problems will appear, such as flute paper broken, low speed, collapsed flute, high-low flute and so on.​Electrical Heating Hard Chrome Plated Corrugated Roller For Dongguang Corrugated Machine



Flute Profile Height(mm) Pitch(mm) Flutes/300mm T.U.R
A UV 4.5-5.0 8.0-9.5 34±3 1.45-1.52
C UV 3.5-4.0 6.8-7.9 41±3 1.37-1.47
B UV 2.5-3.0 5.5-6.5 50±4 1.33-1.41
E UV 1.1-2.0 3.0-3.5 93±6 1.24-1.36
F UV 0.8-1.0 2.2-3.2 115±20 1.19-1.25
G UV 0.6-0.8 1.8-2.8 136±20 1.15-1.20
N UV 0.4-0.6 1.2-2.2 193±55 1.10-1.15
Others UV Customized Design Design Design



50CrMo Alloy Steel 0.08mm Hard Chrome Plated Roller 2
