E Flute Inner Suction Hard Chrome Plated Roller

1set
MOQ
$5000-$30000/set
Price
E Flute Inner Suction Hard Chrome Plated Roller
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 50CrMo Precision Forged Alloy Steel
Coating: Hard Chrome 60-80μm
Size: 1900mm×Φ340mm
Heating Treatment: Intermediate Frequency Quenching
Hardness: >HRC58
Flute Type: E Flute 1.5mm
Warranty: 8 Million Meters
Refurbish: 3-4 Times
High Light:

Inner Suction Corrugating Roller

,

E Flute Hard Chrome Plated Roller

,

Inner Suction Corrugating Rolls

Basic Infomation
Place of Origin: Made in China
Brand Name: Meijia
Certification: ISO9001
Model Number: 1900-350
Payment & Shipping Terms
Packaging Details: Wooden Boxes
Delivery Time: 60-90 days
Payment Terms: T/T
Supply Ability: 1500 sets per year
Product Description

E Flute Hard Chrome Plated Alloy Steel Corrugating Rolls Inner Suction



1. Strict Selection of Alloy Steel Corrugating Rolls Material



50CrMo alloy steel in China is supplied by best manufacturer in China. Adequate raw material in warehouse can guarantee the delivery time for our orders.

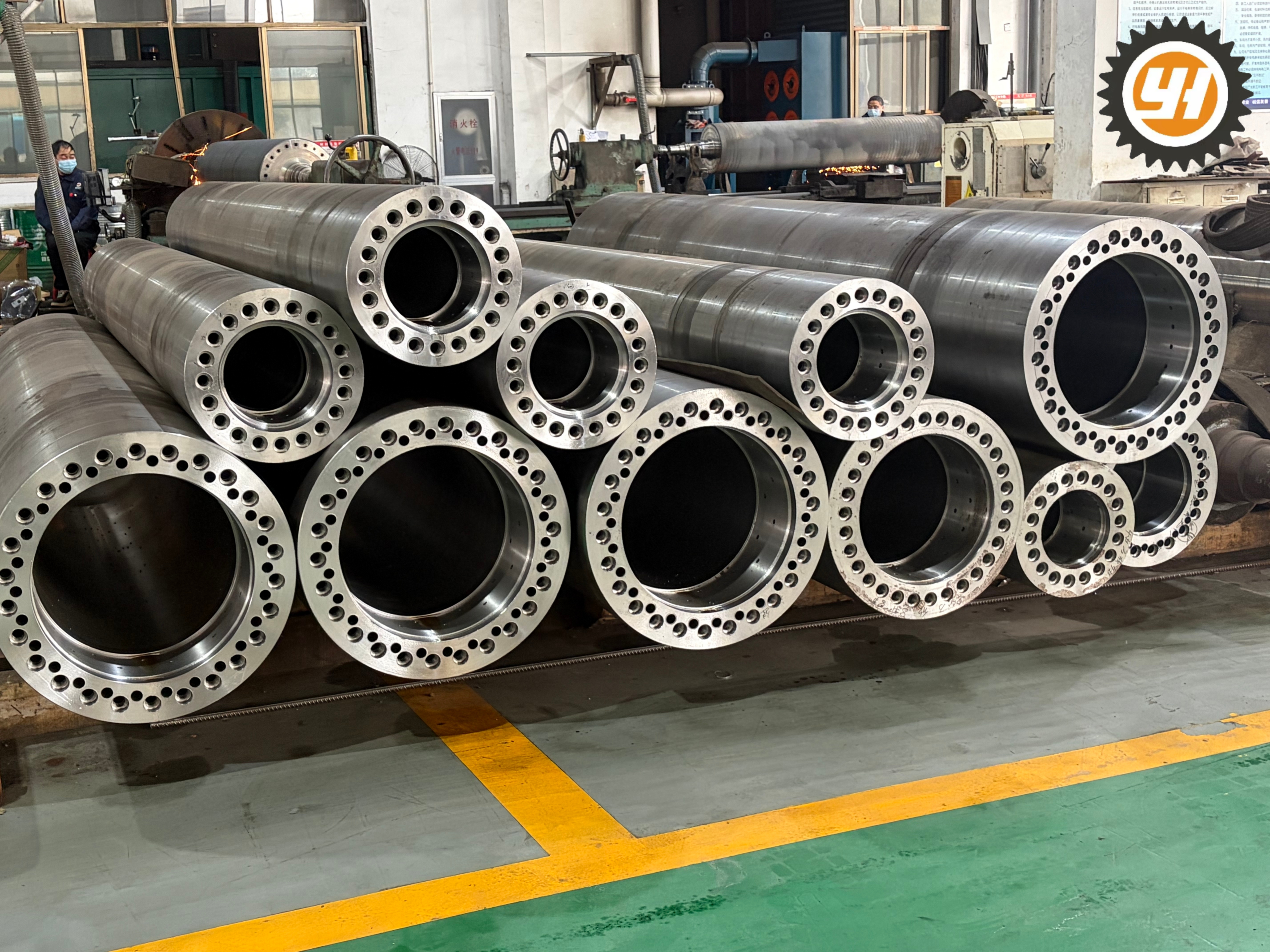

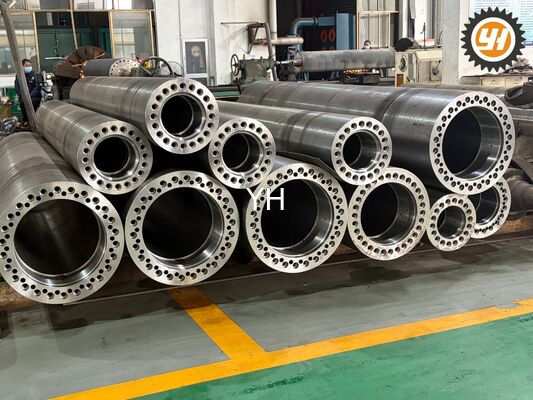

E Flute Inner Suction Hard Chrome Plated Roller 0


2.Precision Welding Make Inseparable



The roll barrel and shafts shrink fit together. After welding do tempering to reduce stress. We do steam leak detction.

E Flute Inner Suction Hard Chrome Plated Roller 1


E Flute Inner Suction Hard Chrome Plated Roller 2
Intermediate frequency quenching machine.

E Flute Inner Suction Hard Chrome Plated Roller 3
Polishing machine



3. Flute profile



The most important parameter is the flute profile. To design the flute profile, we must know the corrugated paper gsm, speed, flute height, correct diameter and other requirement such as good FCT, saving paper, etc. Our engineer has rich experience of designing flute profile. Without good design, many problems will appear, such as flute paper broken, low speed, collapsed flute, high-low flute and so on.



The following table is just for a reference.

    Flute   Profile

   Height(mm)

   Pitch(mm)   Flutes/300mm         T.U.R
     A   UV      4.5-5.0     8.0-9.5       34±3     1.45-1.52
     C   UV      3.5-4.0     6.8-7.9       41±3     1.37-1.47
     B   UV     2.5-3.0     5.5-6.5       50±4     1.33-1.41
     E   UV     1.1-2.0     3.0-3.5       93±6     1.24-1.36
     F   UV     0.8-1.0     2.2-3.2     115±20     1.19-1.25
     G   UV     0.6-0.8     1.8-2.8     136±20     1.15-1.20
     N   UV     0.4-0.6     1.2-2.2     193±55     1.10-1.15
  Others   UV   Customized    Design      Design     Design



















































4. Heat well



A. Start the corrugating rolls before filling in steam to avoid abnormal deformation.

B. Check the temperature of corrugating roll and pressure roll regularly to avoid temperature decrease caused by accumulation of condensate water.

C. If the temperature is abnormal, please check and keep the correct position of siphon to let condensate water out successfully.
