Mill Roll Stand Corrugator Machine Corrugated Packaging

1 set
Mill Roll Stand Corrugator Machine Corrugated Packaging
Features Gallery Product Description Request A Quote
Width: 2800/2500/2200/2000/1800/1600/1400
Splicer: Mingjia Or Customer Required
Basic Infomation
Place of Origin: Made In China
Brand Name: YH
Payment & Shipping Terms
Delivery Time: 3-4months
Payment Terms: T/T
Supply Ability: 15lines
Product Description

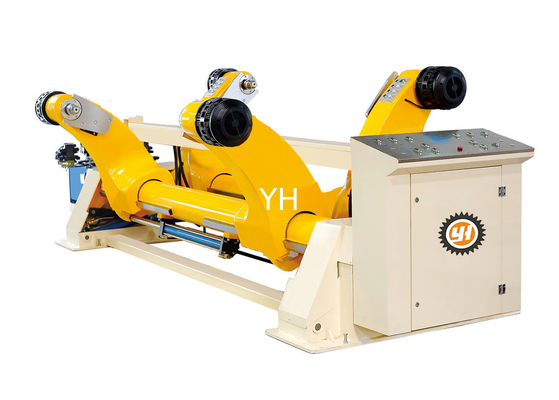

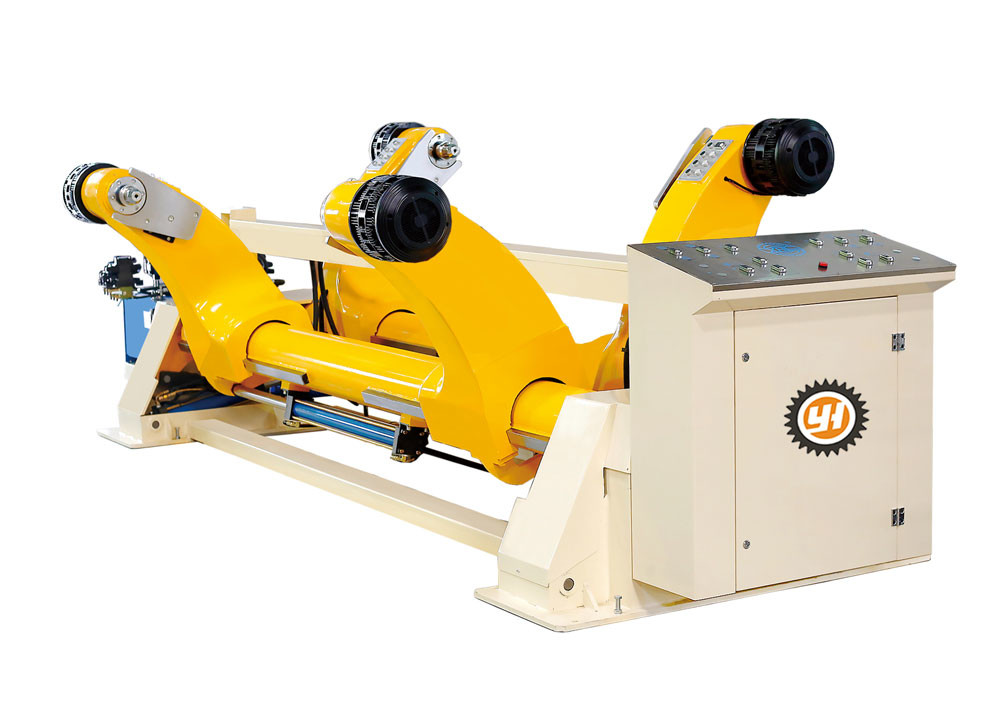

V5-MRS Hydraulic Mill Roll Stand


Mill Roll Stand Corrugator Machine Corrugated Packaging 0

Functional Characteristics


  • The seat is equipped with hydraulic steering rod bearings, to eliminate the damage cause by foundation deformation to the hydraulic cylinder;
  • The lock hole of lift arm is equipped with bearing steel sleeve, to improve the service life and easy to replace.
  • The hydraulic lift at left and right, more stable operation and longer service life.
  • For traditional mill roll stand, there is only one oil cylinder to drive main arm to lift up paper roll. During long use period, affected by leverage, the other arm that not lifted by oil cylinder will distort and bend due to uneven stress. Especially when using wide-with paper, it is one side higher while another side lower, cause paper easily broken and uneven tension, hence, that will increase the waste products and cardboard of bad flatness.Our mill roll stand is equipped with oil cylinder at each axle to lift up at the same time, even drain, make sure main axle and arm won’t distort during long use period


Technical Parameters

  • Maximum clamping diameter is 1500MM
  • Multi-point brake with 3 "chuck
  • Taiwan SEVEN OCEAN oil hydraulic system,hydraulic pressure station motor 5.5KW
  • FRA "Schneider" electric apparatus
  • "AIRTAC" pneumatic components
