Single Facer Corrugator Machine Made In China

1 set
Single Facer Corrugator Machine Made In China
Features Gallery Product Description Request A Quote
Width: 2800/2500/2200/2000/1800/1600/1400
Speed: 200/250/300/350/400/450 M/min
Steam Pressure: 0.6-0.8Mpa
Corrugated Roll: Tungsten Carbide
Basic Infomation
Place of Origin: Made In China
Brand Name: YH
Payment & Shipping Terms
Delivery Time: 3-4months
Payment Terms: T/T
Supply Ability: 15lines
Product Description

Functional Characteristics

1. This single facer adopts glue tray free design. The gluing roller’s rotation direction is inversed with the traditional single facer. By adopting this design, the extra glue won’t splash out and waste. Moreover, for traditional single facer, the corrugated roller is closed to the glue which is easily to broil the glue, greatly wasted.

2. Single facer adopts servo motor, the particular variable-speed drive, remove the gear graduation such power-wasting. The main motor adopts synchronized belt for direct drive, supported with patented design, which saves more than 30% electricity compared with traditional single facer.

3. Traditional single facer, the rolls stop rotation while stop, as a result, it cause uneven temperature between the up and the down, we called “banana effect”, foaming created when re-start and produce the waste, slowing down the line speed. Our latest high-speed Corrugating Machine , has a significant feature.

4. Pressing roll is auto separated from corrugated roll when shut down the machine, and auto rotary independently, to make each roll reach even temperature. So, when re-start the machine, the paper board won’t become out of shape and cave in due to uneven temperature of corrugated roll, greatly reducing the waste.

5. Patented design – Front Push Type to change corrugated roller in 30mins, makes production more flexible.

6.  Adopts negative pressure design, won’t cause the waste while rapid acceleration or sudden braking, easy threading, safe & simple. Currently, it’s based on positive pressure in the market, whose weakness is that the heat blows out, makes working place high temperature; it cause the waste easily while rapid acceleration or sudden braking; threading not convenient, it’s troublesome once paper braking and roll up into bellows; complicated components, high maintenance cost.

7. Integrated design of control board & machine body, simple & practical, makes workers’ operation reaction being quicker, saving more space

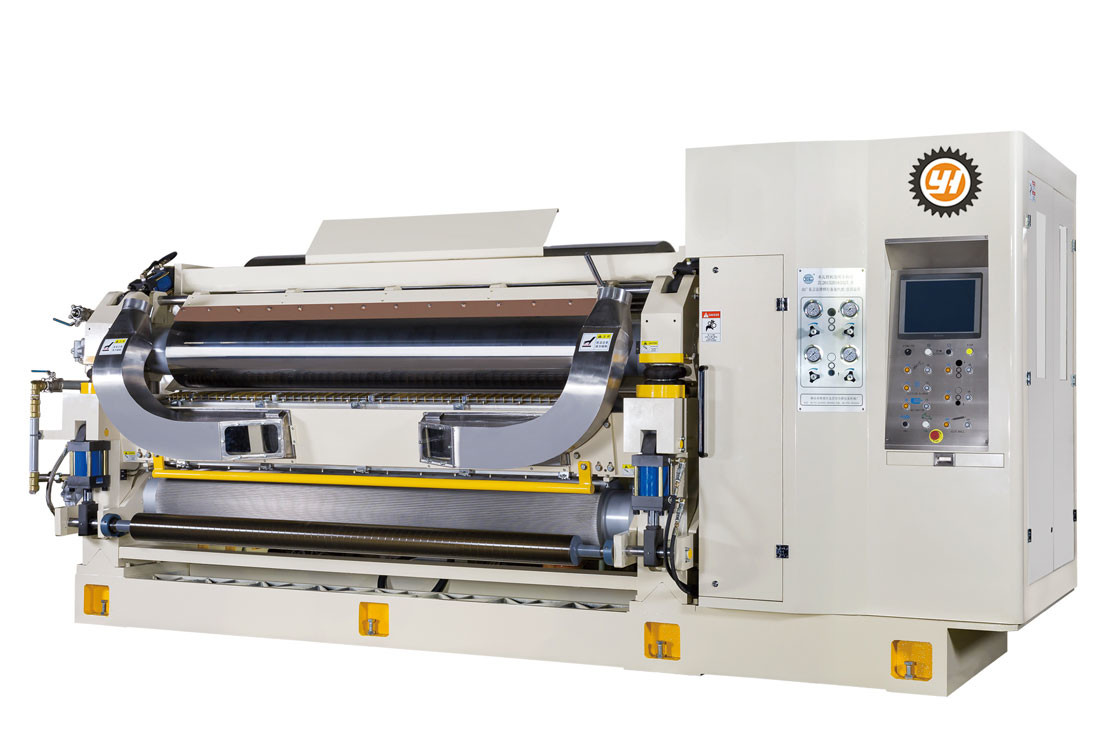

Single Facer Corrugator Machine Made In China 0


Technical Parameters

  • Max mechanical speed: 250m/min, Max production speed: 200m/min
  • Corrugated roller diameter Ф320/360mm, the upper and the lower both made of high quality chrome molybdenum alloy steel, combined treatment to strengthen the hardness, surface is applied tungsten carbide coating, the service life is guaranteed 30,000,000 meters. Pressure roller diameter Ф410mm, surface is grinded and hard chrome plated.surface is plated. Gluing order diameter Ф255mm, surface is grinded with concave and hard chrome plated. Sizing roller diameter Ф140mm, surface is grinded polish and hard chrome plated. All rolls inside the machine are precious balance treated
  • FRA "Schneider" electric apparatus
  • PHYSIS/Siemens servo motor and servo Drive
  • Taiwan SEVEN OCEAN oil hydraulic system,hydraulic pressure station motor 3.7KW
  • Taiwan"Chengbang" reducer motor
  • "AIRTAC" pneumatic components
  • Electric cabinet with industrial air conditioning
  • Roller changing within 10 mins.
  • The main drive is driven by synchronous belt and synchronous wheels
