Glue Machine Corrugator Machine

1 set
Glue Machine Corrugator Machine
Features Gallery Product Description Request A Quote
Width: 2800/2500/2200/2000/1800/1600/1400
Speed: 200/250/300/350/400/450 M/min
Layer: 1/2/3
Basic Infomation
Place of Origin: Made In China
Brand Name: YH
Payment & Shipping Terms
Delivery Time: 3-4months
Payment Terms: T/T
Supply Ability: 15lines
Product Description

Functional Characteristics

Functional Characteristics

  • Stratification independent drive for precise synchronization
  • Traditional composite plastic machines are mechanical synchronization or frequency synchronization by the above two methods in actual use are lower than the absolute synchronization effect, it will waste a lot of paste and reduce the production rate, affecting the quality of cardboard , factory using unique differential synchronizer way synchronization ensures consistent paste on any case conditions. Compared to other manufacturers, 20% -30% amount of paste can be saved
  • Glue roll is processed by cobwebbing, save paste and avoid splash. All rotation rolls are processed by dynamic balance
  • Paste gap control and roll gap width can be adjusted by the button in PLC, also can be automatically adjusted with line speed though PLC. Paste tray is pneumatic lifting, easy for cleaning and maintenance
  • Pasting angel will be designed according to the site, to make sure the paste is applied onto the corrugated tooth tip
  • The gap between the press roller and the pasting wheel can be automatically switched by the servo motor or manually.
  • Press roll with rotation function

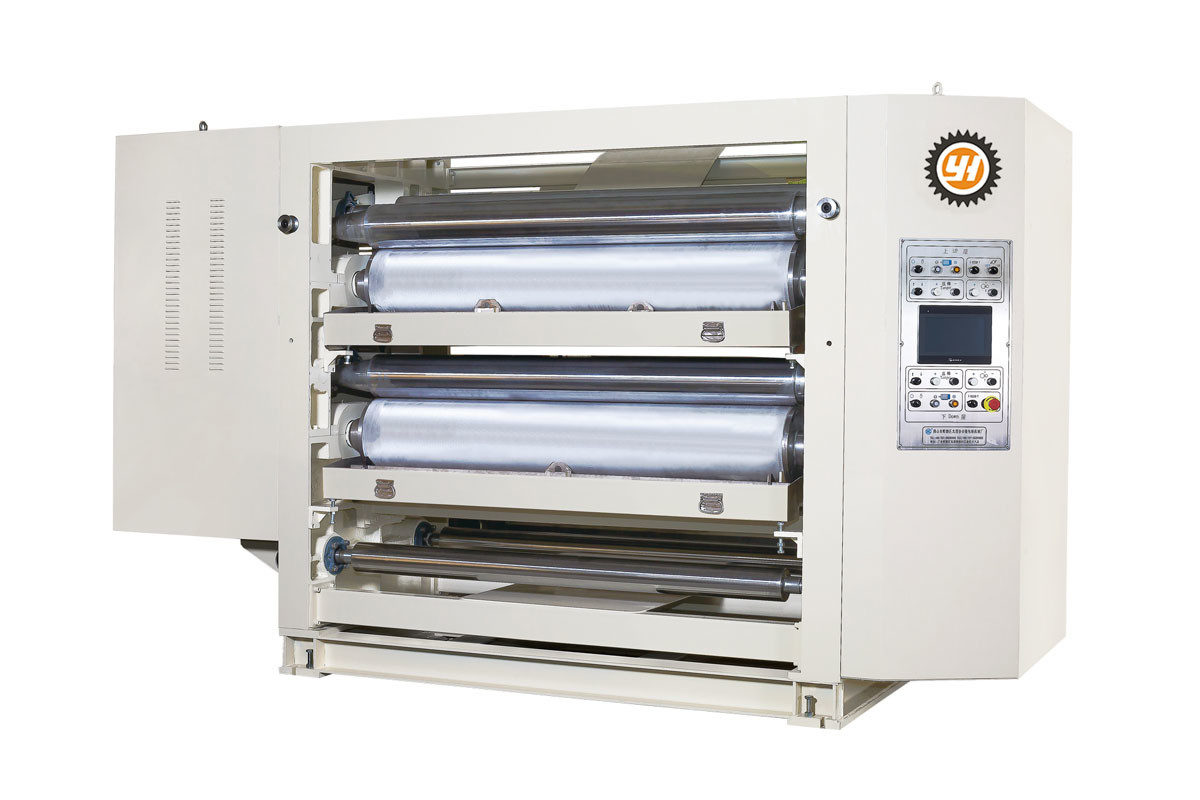

Glue Machine Corrugator Machine 0


Technical Parameters

  • Technical Parameters

  • Maximum mechanical speed: 450M/min, maximum production speed: 400M/min
  • B-Glue line within 1.2mm,C-Glue line within 1.5mm.
  • Siemens PLC
  • “Kunlun general state” display
  • German gear reducer
  • PHYSIS servo motor and servo Drive 12kw
  • "Fulong" synchronous belt
  • Siemens servo motor and servo Drive for paste control/roller pressing
  • The main drive (sizing roller/control roller) uses an Italian PHYSIS servo motor and servo drive.
