Peripheral Heating High Tungsten Carbide Corrugating Rolls for BHS Machine

1 set
MOQ
$1000~50000
Price
Peripheral Heating High Tungsten Carbide  Corrugating Rolls for BHS Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 50CrMoA
Coating: Tungsten Carbide
Speed: 400m/min
Lifetime: 60-100 Million Meters
Hardness: HV1250-1400
Heating Treatment: Composited Heating Treatment
Basic Infomation
Place of Origin: MADE IN CHINA
Brand Name: YH
Certification: ISO9001
Model Number: A/C/B/E/F Flute
Payment & Shipping Terms
Packaging Details: wooden box
Delivery Time: 80~110days
Payment Terms: T/T
Supply Ability: 1000 sets per year
Product Description

Peripheral Heating High Tungsten Carbide Corrugating Rolls for BHS Machine

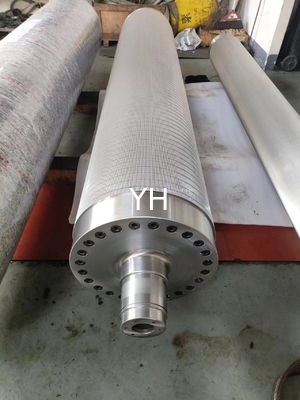

  Peripheral Heating High Tungsten Carbide  Corrugating Rolls for BHS Machine 0

What's Peripheral Heating Corrugated Rollers??



This is a new type of steam heating structure corrugated roller, which includes a hollow cylinder and a shaft head fixed and sealed at both ends of the cylinder. The middle of the end face of the shaft head is equipped with a through hole, which is connected to the internal space of the cylinder.

A certain number of steam pipe holes are evenly arranged on the end face of the cylinder body. The steam pipe hole is equipped with a steam pipe. The two ends of the steam pipe are connected with a steam pipe installation plate, which is fixedly connected to the end face of the cylinder.

The peripheral heating system and drilled corrugated roller developed by Zhejiang Yonghui have been successfully installed in many corrugated paperboard manufacturers, especially in important areas that require high-speed and efficient production.



Peripheral Heating High Tungsten Carbide  Corrugating Rolls for BHS Machine 1

ADVANTAGES OF PERIPHERAL HEATING SYSTEMS



Innovate the traditional steam heating corrugated roller technology by changing the original central single tube heating to multi hot spot heating on the inner surface of the corrugated roller, and increase the operating speed of the corrugated roller from 150-160 m/min to 200-400 m/min. Moreover, the deformation of the corrugated roller is small, and the service life is increased by more than 20%. It is highly efficient, economical, and practical, saving a large amount of production costs.





Exclusive Composite Heat Treatment Process

1. We are the only manufacturer in the domestic industry that adopts composite heat treatment methods;

2. The cylinder is subjected to a series of composite treatments of nitriding, quenching, tempering, and cryogenic treatment. Nitriding and quenching penetrate nitrogen atoms into the interior of the steel to form stable nitrides with metal atoms, and the cryogenic treatment is carried out at a low temperature of -190°C. , reducing the deformation of the cylinder;

3. Enhance the stability of steel and improve its surface hardness, wear resistance, toughness and corrosion resistance;

4. The surface hardness of the corrugating roller can reach above HRC60, effectively extending the service life of the corrugating roller;

5. Provide a hardness basis for multiple refurbishment of corrugated rollers, allowing the corrugating rollers to be refurbished up to 3-4 times;

6. The stability of the material is the guarantee of the high-speed operation of the corrugating roller, and the speed of the corrugating roller can reach 350m/min.



Peripheral Heating High Tungsten Carbide  Corrugating Rolls for BHS Machine 2

                                       Tempering Machines



Peripheral Heating High Tungsten Carbide  Corrugating Rolls for BHS Machine 3



                                                             Quenching Machine



Peripheral Heating High Tungsten Carbide  Corrugating Rolls for BHS Machine 4

                                               Cryogenic Treatment

Peripheral Heating High Tungsten Carbide  Corrugating Rolls for BHS Machine 5Peripheral Heating High Tungsten Carbide  Corrugating Rolls for BHS Machine 6

                                                       Nitriding





Peripheral Heating High Tungsten Carbide  Corrugating Rolls for BHS Machine 7Peripheral Heating High Tungsten Carbide  Corrugating Rolls for BHS Machine 8

                                 About Peripheral Heating Hole Machines



Company Introduction



Zhejiang Yonghui Corrugated Roller Co., Ltd. is a professional manufacturer of high-quality corrugated rollers with professional production equipment and strong technical strength. Now it's the Second largest manufacturer in China.



Since its establishment in 2004, we have been devoted to the design and research and development of high-quality corrugated rollers; We have professional production technology, experienced professional design, independent research and development capabilities, and a qualified after-sales service team; complete production process, fully automatic CNC precision grinders, and use the American JP8000 supersonic tungsten carbide spraying equipment, which is currently the most advanced supersonic spraying equipment in China. Ensure that every design and production can meet the needs of customers and achieve customer value.



All products have been ground with the highest precision CNC grinding machine, with a roundness tolerance of 10 μ M. Adopting nitrogen hardening and medium frequency induction quenching processes, ensuring high hardness and wear resistance of corrugated rollers, and extending their service life. Our company can produce corrugated rollers for all models of single faces.



Main products: tungsten carbide corrugated rollers, wear-resistant hard chrome corrugated rollers, metal anilox rollers, high-precision pressure rollers, glue rollers, doctor rolls and other roller products.
