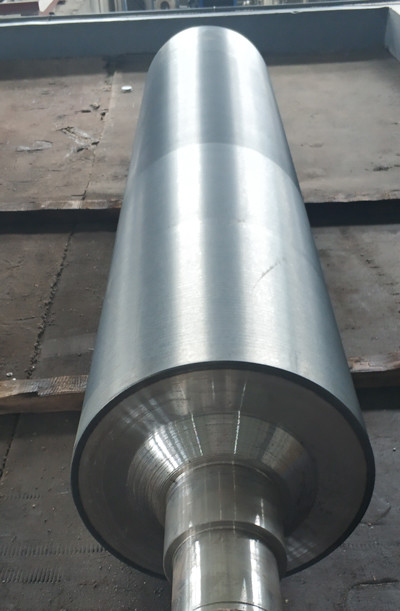

Steam Heating Pressure Roller Corrugating Pressure Roll
1.Specifications of Pressure Roll:
| Product name | Pressure roll |
| Application | Single facer, corrugator machine |
| Raw material | 45# Steel |
| Heating treatment | Intermediate frequency quenching |
| Hardness | ≥HRC 55 |
| Harden Layer | ≥7mm |
| Coating | Hard chrome 0.05-0.08mm |
| Diameter | 50-600mm |
| The roller surface length | 100-4000mm |
| Cylinder run-out accuracy | ≤0.02mm |
| Cylindricity accuracy | ≤0.015mm |
| Dynamic balancing accuracy grade G2.5 | G2.5 |
2.High Hardness from Vertical Quenching Process
Intermediate frequency quenching can guarantee both the hardness and harden depth we need. Our harden layer depth can reach to 8-12mm. With harder base material as foundation, the lifetime of our pressure rollers are greatly extended. After different heat treatment process, the pressure roller surface becomes more wear-resistant and durable
