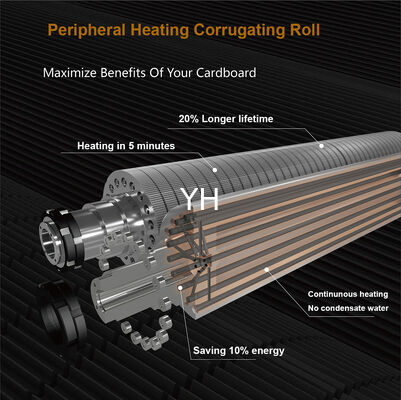

C Flute Inner Suction Tungsten Carbide Corrugated Roller

1set
MOQ
C Flute Inner Suction Tungsten Carbide Corrugated Roller
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 50CrMo Precision Forged Alloy Steel
Coating: American Praxair Super Hard 1342 Tungsten Cabide Powder
Width: 2293mm×Φ400mm
Heating Treatment: Intermediate Frequency Quenching
Hardness: >HRC58 After Hardening
Flute Type: C Flute
Warranty: 40million Linear Meters Or 1 Year, Whichever Comes First
Finishing: Ra <0.6μm
High Light:

C Flute Corrugated Roller

,

Tungsten Carbide Corrugated Roller

,

50CrMo Inner Suction Corrugated Roller

Basic Infomation
Place of Origin: Made in China
Brand Name: Meijia
Certification: ISO9001
Payment & Shipping Terms
Packaging Details: Wooden Boxes
Delivery Time: 60-90 days
Payment Terms: T/T
Supply Ability: 1500 sets per year
Product Description

C Flute Inner Suction High Speed Tungsten Carbide Corrugating Rolls



Tungsten carbide corrugating roll is the most important part of single facer and it’s a essential part for corrugated cardboard or carton manufacturers. We apply JP8000 HVOF technology which is imported from American Praxair. High hardness, strong binding force, good abradability and excellent performance of polishing can prolong the service lifetime.





Comparison Between Tungsten Carbide Roller and the Hard Chrome Corrugated Roller



Compared Item Chrome Plated Corrugated Roller Tungsten Carbide Corrugated Roller
Flute profile and TUR Due to the poor wear resistance of chrome-plated corrugated roller, in order to ensure the wear height is not lower than the standards,the tooth profile needs to be designed higher accordingly. Tungsten carbide corrugated roller has high hardness, excellent wear resistance and low tooth height. Moreover, it will not reduce the compressive strength of the finished products due to the wear on the top of the tooth. A more optimized v-shape tooth can be designed to increase the strength of the cardboard, reduce the amount of the glue applied and save corrugated paper.
Thickness of finished board Using chrome corrugated roller will lead to wear, and the height of the flute will be lower, so the thickness of corrugated board will be decreased. Tungsten carbide corrugated roller will never wear in theory, and can ensure the finished corrugated board’s durability from high quality production.
Service life of corrugated roller The service life of chrome-plate corrugated roller is generally between 8-12 million meters. The service life of tungsten carbide corrugated roller can reach at least 35 million meters, reducing the number of maintenance and replacement times, saving manpower, material and financial resources.
Usability of corrugated roller’s substrate Because chrome corrugated roller wear resistance is poor, and repair at every time will reduce the corresponding diameter and hardness. Paper rate will be increased accordingly, and the number of repair will be less. Tungsten carbide roller’s wear resistance is good, and it’s tungsten carbide coating adopts special removing process, so corrugated roller substrate can not be damaged, and corrugated roller can be used for many times with repairing.

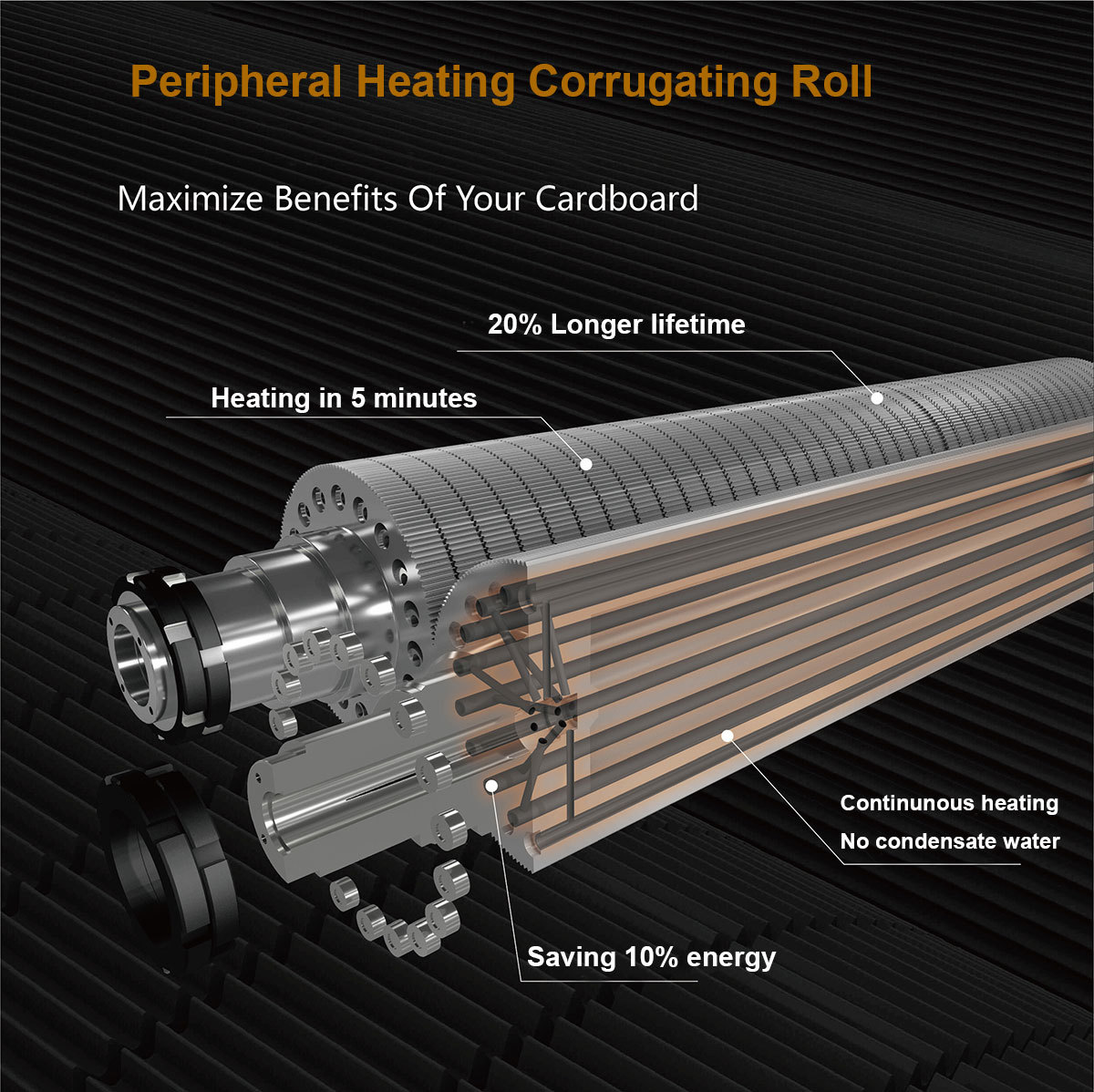

C Flute Inner Suction Tungsten Carbide Corrugated Roller 0
