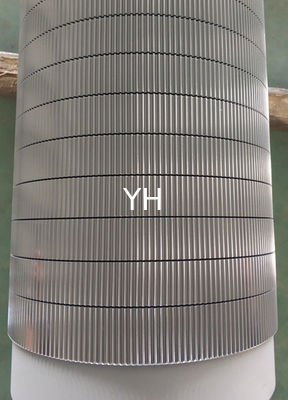

B Flute Hard Chrome Plating Traditional Corrugating Roll Wear Resistant Roll
Hard chrome corrugated roll:
♦ 50CrMo alloy steel refined forging, barrel wall thickness ≥70mm
♦ Adopt advanced heat treatment technology, quenching hardness ≥HRC58
♦ Precision machine to do multi-layer process
♦ Hard chrome thickness 0.06-0.08mm,
♦ Lifetime more than 8 million meters
♦ A,C, B, E,F G, N flute
Appliation:
Corrugating roll is one of the most important components in corrugated carton production. Usually, it is an essential part of single facer. Corrugating rolls consist of two parts: upper roll and lower roll. The lower corrugating roll is the driving roll, which is generally fixed while the upper one is the driven roll.
Precision Index of Hard Chrome Corrugated Roller
| Item | Index |
| Gear teeth height limits of deviation | ≤ 0.01mm |
| Addendum circle run out tolerance | ≤ 0.02mm |
| Gear teeth width limits of deviations | ≤ 0.015mm |
| Tooth profile limits of deviations | ≤ 0.01mm |
| Gear lateral face counter shaft parallelism | ≤ 0.01mm |
| Tip cylinder element linear | ≤ 0.01mm |
| Gear teeth division limits of deviations | ±10" |
