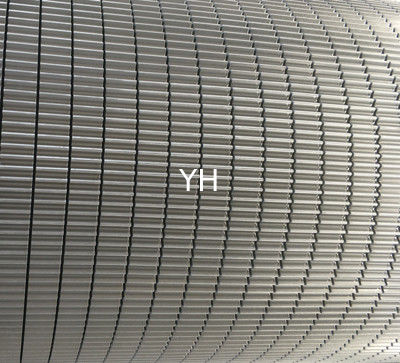

Tungsten Carbide C Flute Corrugated Paper Roll Traditional Corrugating Roll

1set
MOQ
Tungsten Carbide C Flute Corrugated Paper Roll Traditional Corrugating Roll
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 50CrMo Precision Forged Alloy Steel
Coating: Tungsten Carbide Powder, 0.06-0.08mm
Heating Treatment: Intermediate Frequency Quenching
Hardness: HRC60-62 After Hardening
Harden Layer: 9-12mm Depth
Flute Type: C Flute Height 3.7mm
Warranty: 35 Million Linear Meters
Refurbish: 3-4 Times
High Light:

Wear Resistant Traditional Corrugating Roll

,

C Flute Traditional Corrugating Roll

,

50CrMo Forged Corrugating Roll

Basic Infomation
Place of Origin: Made in China
Brand Name: Meijia
Certification: ISO9001
Model Number: 2400mm×380mm
Payment & Shipping Terms
Packaging Details: Wooden Boxes
Delivery Time: 60-90 days
Payment Terms: T/T
Supply Ability: 1500 sets per year
Product Description

Tungsten Carbide C Flute Corrugated Shaft Traditional Corrugating Roll



1.Specification of Tungsten Carbide Corrugated Paper Roll



a. Tungsten carbide corrugated roller has excellent wear resistance and low flute height. Moreover, it will not reduce the compressive strength of the finished corrugated board. A more optimized v-shape flute profile can be designed to increase the strength of the cardboard, reduce the amount of the glue applied and save corrugated paper.



b. Tungsten carbide corrugated roller will never wear in theory, and can ensure the production of high quality finished corrugated board’s durability



c. The service life of tungsten carbide corrugated roller can reach at least 35 million meters, reducing the number of maintenance and replacement times, saving manpower, material and financial resources.



d. Tungsten carbide roller’s wear resistance is good, and it’s tungsten carbide coating adopts special removing process, so corrugated roller substrate can not be damaged, and corrugated roller can be used for many times with repairing.

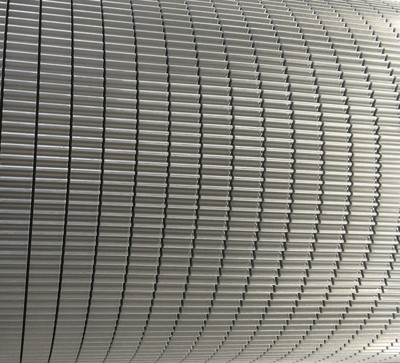

Tungsten Carbide C Flute Corrugated Paper Roll Traditional Corrugating Roll 0



2. Flute Profile of Corrugated Paper Roll

Almost every set of corrugating rolls are needed to be designed and customized separately according to the width, diameter, flute height, corrugated paper GSM, speed and cardboard physical index requirement.



Flute Profile Height(mm) Pitch(mm) Flutes/300mm T.U.R
A UV 4.5-5.0 8.0-9.5 34±3 1.45-1.52
C UV 3.5-4.0 6.8-7.9 41±3 1.37-1.47
B UV 2.5-3.0 5.5-6.5 50±4 1.33-1.41
E UV 1.1-2.0 3.0-3.5 93±6 1.24-1.36
F UV 0.8-1.0 2.2-3.2 115±20 1.19-1.25
G UV 0.6-0.8 1.8-2.8 136±20 1.15-1.20
N UV 0.4-0.6 1.2-2.2 193±55 1.10-1.15
Others UV Customized Design Design Design
