JS Machine F Flute 50CrMo TC Corrugating Rolls

JS Machine F Flute 50CrMo TC Corrugating Rolls
Features Gallery Product Description Request A Quote
Material: 50CrMo Precision Forged Alloy Steel
Coating: 60-80μm, American Praxair Super Hard 1342 Tungsten Cabide Powder
Width: 2300mm×Φ340mm
Heating Treatment: Intermediate Frequency Quenching
Hardness: >HRC58
Micro Hardness: HV1250-1400
Flute Type: F Flute
Warranty: 30million Linear Meters Or 1 Year, Whichever Comes First
Finishing: Ra <0.6μm
High Light:

JS Machine TC Corrugating rolls


F Flute TC Corrugating rolls


50CrMo TC Corrugated Roller

Basic Infomation
Place of Origin: Made in China
Brand Name: Meijia
Certification: ISO9001
Model Number: F-2200-340
Payment & Shipping Terms
Packaging Details: Wooden Boxes
Delivery Time: 60-90 days
Payment Terms: T/T
Supply Ability: 1500 sets per year
Product Description

F Flute 50CrMo Tungsten Carbide Corrugated Roller for JS Machine


Product name Corrugating rolls, corrugated roller
Material 50CrMo
Application Single facer, corrugator machine
Diameter 200-600mm
Width 1000-2800mm
Flute Profile A, C, B, E, F, G, N, O
Coating Tungsten carbide, hard chrome 0.06-0.08mm
Corrugator line BHS, Fosber, BW Paper System, Hsieh Hsu, K&H, JS, Fuli, Wanlian, Taiwan Mingwei, Chinese Mingwei, Meiguang, Dongguang, Dpack, Xinguang, Xieyang, Shengli, Indian machine, etc.

Tungsten carbide corrugating roll is the most important part of single facer and it’s a essential part for corrugated cardboard or carton manufacturers. We apply JP8000 HVOF technology which is imported from American Praxair. High hardness, strong binding force, good abradability and excellent performance of polishing can prolong the service lifetime.

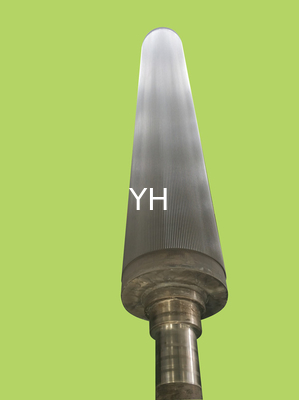

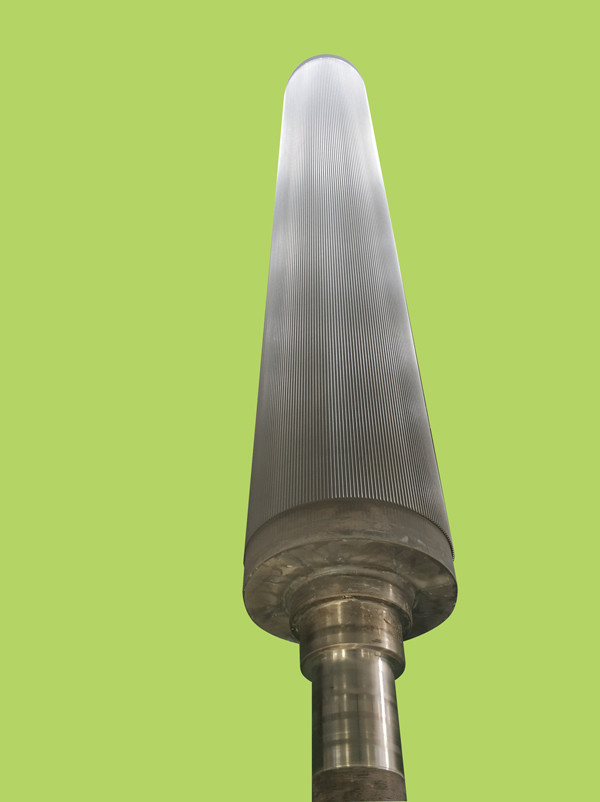

JS Machine F Flute 50CrMo TC Corrugating Rolls 0

Our Technology


The unique way of ultra-high pre-expansion is adopted to deal with the high temperature and pressure inside the corrugating roll,and improve the capacity of anti-fatigue strength and elastic strength,enabling corrugating roll to avoid deformation and uneven expansion during the following use.It has perfectly solved the problem like resonance(the main reason why collapsed flute and high-low flutes happened),which caused by deformation,unstable texture,uneven expansion during running process.

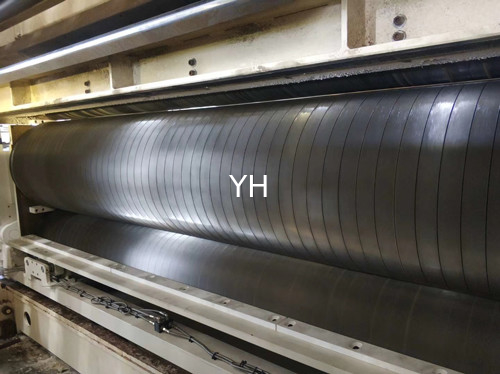

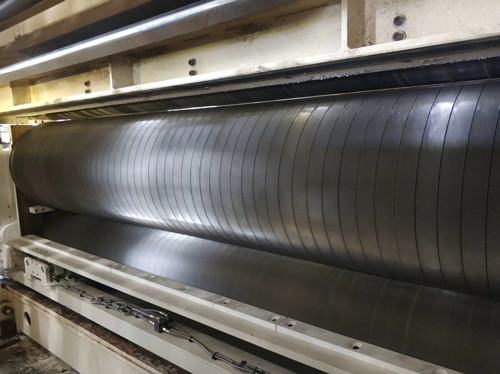

JS Machine F Flute 50CrMo TC Corrugating Rolls 1
