HV1250 C Flute 3.7mm TCY Corrugated Machine Roller

1set
MOQ
$5000-$20000/set
Price
HV1250 C Flute 3.7mm TCY Corrugated Machine Roller
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 50CrMo Precision Forged Alloy Steel
Coating: 60-80μm American Praxair Super Hard 1342 Tungsten Cabide Powder
Size: 2400mm*408mm
Micro Hardness: HV1250-1400
Heating Treatment: Intermediate Frequency Quenching
Hardness: >HRC58 After Hardening
Harden Layer Depth: 8-12mm
Flute Type: C Flute 3.7mm
Warranty: 35 Million Meters
Finishing: Ra <0.6μm
High Light:

TC Corrugated Machine Roller

,

C Flute Corrugated Machine Roller

,

C Flute 3.7mm Corrugated Roller

Basic Infomation
Place of Origin: Made in China
Brand Name: YH
Certification: ISO9001
Model Number: 2400-408
Payment & Shipping Terms
Packaging Details: Wooden Boxes
Delivery Time: 60-90 days
Payment Terms: T/T
Supply Ability: 1500 sets per year
Product Description

2400mm Width Tungsten Carbide C Flute Corrugated Roller TCY Corrugated Machine



1. Introduction

-The largest professional corrugated roller manufacturer in northern of China

-50CrMo refined forging steel supplied by the best manufacturer in China.

-A, C, B, E, F, G, N flute corrugated rolls

-Tungsten carbide corrugated roll and hard chrome corrugated roller

-American Praxair JP8000 HVOF tungsten carbide plating equipment

-American Praxair super-hard 1342 tungsten carbide powder

-Medium frequency quenching heating treatment machine makes the hardness of base steel more than HRC58.

-High precision and high performance CNC grinding machine equipped with Germany Siemens control system.

-We design the flute profile according to customer’s medium paper GSM, speed, FCT requirement.

-Tungsten carbide corrugated roll lifetime is 3-5 times longer than hard chrome roll because of its excellent wear-resisting property

-Our corrugated rollers has been exported to many countries such as Korea, Russia, Egypt, India, Thailand, Myanmar, etc.

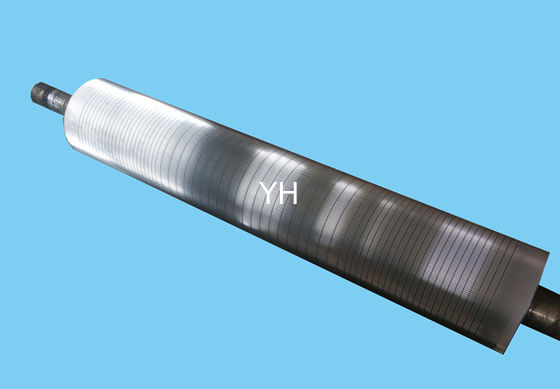

HV1250 C Flute 3.7mm TCY Corrugated Machine Roller 0



2. Features of Tungsten Carbide Corrugating Roll



a. Tungsten carbide corrugated roller has excellent wear resistance and low flute height. Moreover, it will not reduce the compressive strength of the finished corrugated board. A more optimized v-shape flute profile can be designed to increase the strength of the cardboard, reduce the amount of the glue applied and save corrugated paper.



b. Tungsten carbide corrugated roller will never wear in theory, and can ensure the production of high quality finished corrugated board’s durability



c. The service life of tungsten carbide corrugated roller can reach at least 35 million meters, reducing the number of maintenance and replacement times, saving manpower, material and financial resources.



d. Tungsten carbide roller’s wear resistance is good, and it’s tungsten carbide coating adopts special removing process, so corrugated roller substrate can not be damaged, and corrugated roller can be used for many times with repairing.

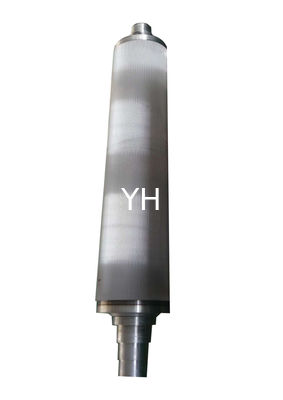

HV1250 C Flute 3.7mm TCY Corrugated Machine Roller 1



Flute Profile



Almost every set of corrugating rolls are needed to be designed and customized separately according to the width, diameter, flute height, corrugated paper GSM, speed and cardboard physical index requirement.



Flute Profile Height(mm) Pitch(mm) Flutes/300mm T.U.R
A UV 4.5-5.0 8.0-9.5 34±3 1.45-1.52
C UV 3.5-4.0 6.8-7.9 41±3 1.37-1.47
B UV 2.5-3.0 5.5-6.5 50±4 1.33-1.41
E UV 1.1-2.0 3.0-3.5 93±6 1.24-1.36
F UV 0.8-1.0 2.2-3.2 115±20 1.19-1.25
G UV 0.6-0.8 1.8-2.8 136±20 1.15-1.20
N UV 0.4-0.6 1.2-2.2 193±55 1.10-1.15
Others UV Customized Design Design Design
