Material: 50CrMo Precision Forged Alloy Steel
Coating: 60-80μm, American Praxair Super Hard 1342 Tungsten Cabide Powder
Width: 2800mm×Φ380/560mm
Steel Wall Thickness: ≥70mm
Heating Treatment: Intermediate Frequency Quenching
Hardness: >HRC58 After Hardening
Micro Hardness: HV1250-1400
Flute Type: E Flute 1.3mm
Warranty: 35million Linear Meters Or 1 Year, Whichever Comes First
Finishing: Ra <0.6μm
High Light:

E Flute Corrugated roller


BW Papersystems Corrugating Rolls


E Flute Tungsten Carbide Corrugating Rolls

Basic Infomation
Place of Origin: Made in China
Brand Name: Meijia
Certification: ISO9001
Model Number: 2800-380/560
Payment & Shipping Terms
Packaging Details: Wooden Boxes
Delivery Time: 60-90 days
Payment Terms: T/T
Supply Ability: 1500 sets per year
Product Description

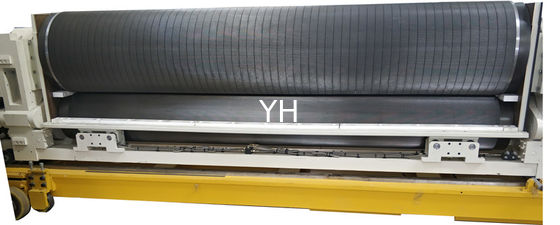

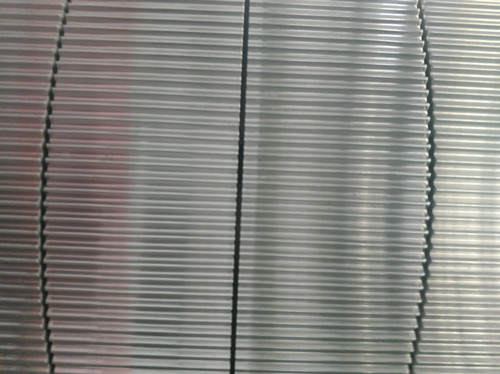

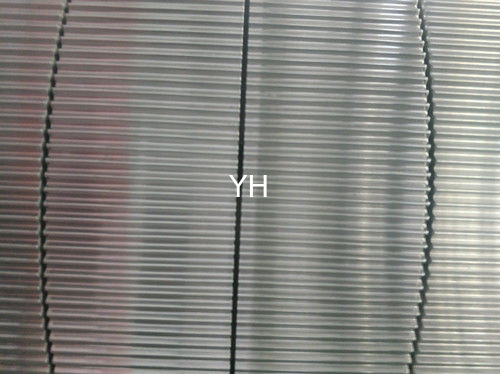

BW Papersystems Corrugator Tungsten Carbide Corrugating Rolls 2800mm Width E Flute


Do you corrugated cardboard production have these problems??


• The designed parameter of flute is not in line with the manufacturing parameters, and the smooth finish of the roll surface is inadequate,causing a high tension of corrugating roll during the running process,that made a poor meshing and resulting in fluting paper broken.

• The uneven of raw material of corrugating roll leads to the uneven of inner heat transfer, of expansion while working, and distortion.This will cause poor formation of fluting paper which resulting in collapsed flute.

• The insufficient precision of corrugating roll and unstable materials lead to the flute teeth deforming during the running process, which can cause bad meshing and unstable operation,and resonance will be occurred while critical value being reached.This is how high-low flute being caused in corrugated board.

• If the camber of corrugating roll is designed irrational, it will cause uneven local pressure, which leads to a series of problems such as poor lamination, inner liner frothing, heavy scoring on inner liner, corrugating paper rippling etc.


Our technology can solve these problems!!


⇒ Meijia,in accordance with the different customer needs and on-site situation, has developed special flute type,which circle parabola is adopted for the medium-high outline,solving the problems like collapsed flute,poor lamination,inner liner frothing,heavy scoring on inner liner from the very beginning.

⇒With scrupulous attitude, Meijia adopted multi-directional detection to enable the parameter of the produced corrugating roll perfectly match that of the designed one. In this way, to keep a smooth and stable operation. The unique tungsten carbide techniques largely improves the abrasive resistance and extend the service of life of corrugating roll. The special polishing method enables the surface finish reach Ra<0.3μm, successfully solving the problem of broken fluting paper owing by its technical defects.

⇒Zhongyuan Special SteelD50CrMo is used as the material to producing corrugating roll.It is the premium alloy precision forging steel featuring stable property and even heat transfer.

⇒A complex tempering process is conducted for the material to further enhance the stability. Adopting vertical intermediate frequency quenching technology to change the organization structure, strengthen the hardness, and maximize the capability of anti-thermal deformation.

⇒The unique way of ultra-high pre-expansion is adopted to deal with the high temperature and pressure inside the corrugating roll,and improve the capacity of anti-fatigue strength and elastic strength,enabling corrugating roll to avoid deformation and uneven expansion during the following use.It has perfectly solved the problem like resonance(the main reason why collapsed flute and high-low flutes happened),which caused by deformation,unstable texture,uneven expansion during running process.


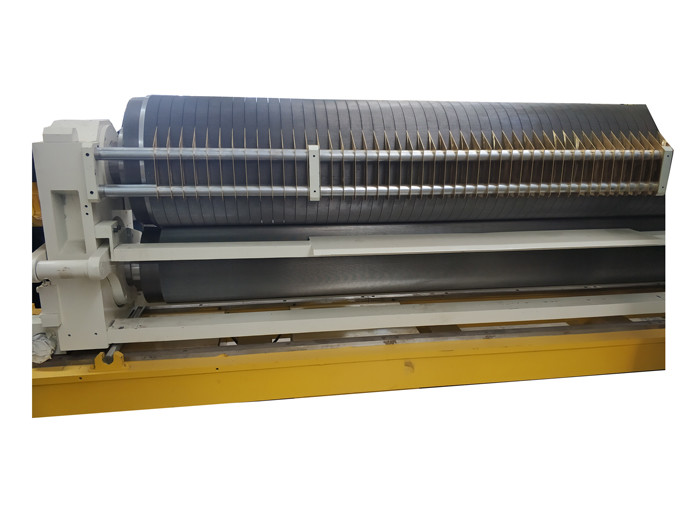

BW Papersystems E Flute Tungsten Carbide Corrugating Rolls 0

Flute profile


The most important parameter is the flute profile. To design the flute profile, we must know the corrugated paper gsm, speed, flute height, correct diameter and other requirement such as good FCT, saving paper, etc. Our engineer has rich experience of designing flute profile. Without good design, many problems will appear, such as flute paper broken, low speed, collapsed flute, high-low flute and so on.


The following table is just for a reference.

Flute Profile Height(mm) Pitch(mm) Flutes/300mm T.U.R
A UV 4.5-5.0 8.0-9.5 34±3 1.45-1.52
C UV 3.5-4.0 6.8-7.9 41±3 1.37-1.47
B UV 2.5-3.0 5.5-6.5 50±4 1.33-1.41
E UV 1.1-2.0 3.0-3.5 93±6 1.24-1.36
F UV 0.8-1.0 2.2-3.2 115±20 1.19-1.25
G UV 0.6-0.8 1.8-2.8 136±20 1.15-1.20
N UV 0.4-0.6 1.2-2.2 193±55 1.10-1.15
Others UV Customized Design Design Design


The same meter of single corrugated board can be saved up to 5‰.

The volume of glue can be saved up to 5‰ thanks to a better lamination between fluting paper and linerboard.

The shortest quality guarantee of running length can reach 3500mym,with tungsten carbide corrugating roll produced by Meijia.

Multiple repair is available,and the initial designing parameter can be attained after repair. The shortest quality guarantee of running length can reach 3500 mym above.


BW Papersystems E Flute Tungsten Carbide Corrugating Rolls 1

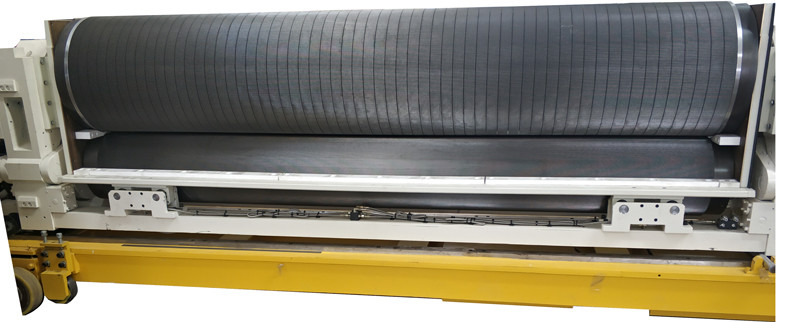

BW Papersystems E Flute Tungsten Carbide Corrugating Rolls 2
