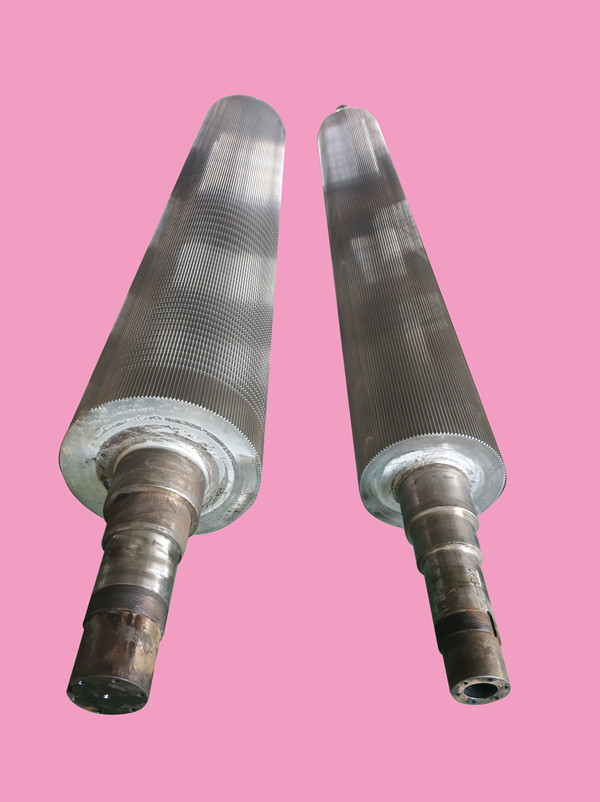

Used for JS Corrugated Machine Tungsten Carbide Regrinding Corrugating Rolls
Flute Profile
According to the customer's requirement, combined with the customer's equipment parameters and the gram weight of the corrugated paper, we develop optimal customized flute profile program and setup various parameters scientifically, to make all the indexes of corrugated roller economic, reliable and reasonable, to improve the physical index of cardboard and production efficiency, at the meantime to reduce the cost of raw material consumption.
| Flute | Profile | Height(mm) | Pitch(mm) | Flutes/300mm | T.U.R |
| A | UV | 4.5-5.0 | 8.0-9.5 | 34±3 | 1.45-1.52 |
| C | UV | 3.5-4.0 | 6.8-7.9 | 41±3 | 1.37-1.47 |
| B | UV | 2.5-3.0 | 5.5-6.5 | 50±4 | 1.33-1.41 |
| E | UV | 1.1-2.0 | 3.0-3.5 | 93±6 | 1.24-1.36 |
| F | UV | 0.8-1.0 | 2.2-3.2 | 115±20 | 1.19-1.25 |
| G | UV | 0.6-0.8 | 1.8-2.8 | 136±20 | 1.15-1.20 |
| N | UV | 0.4-0.6 | 1.2-2.2 | 193±55 | 1.10-1.15 |
| Others | UV | Customized | Design | Design | Design |
